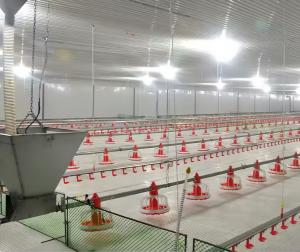

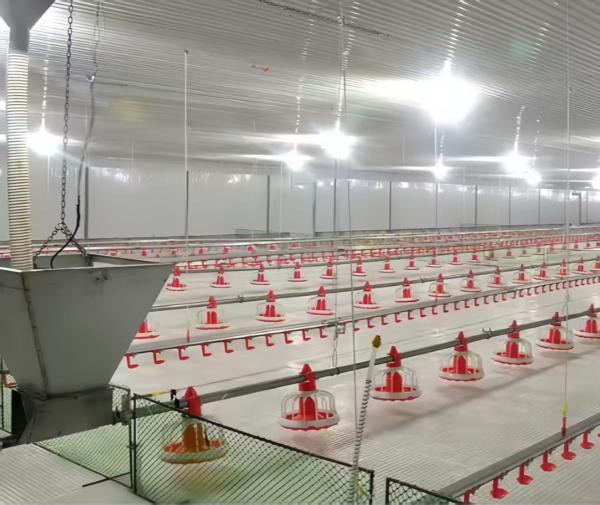

Broiler Feeding on Ground Introduction
Adopted automatic feeding, drinking and environmental control system can help us save energy and labor cost, greatly improve the working efficiency. Meanwhile,the manure cleaning system is easy to use and maintain with environmental water shortage alarm functions.

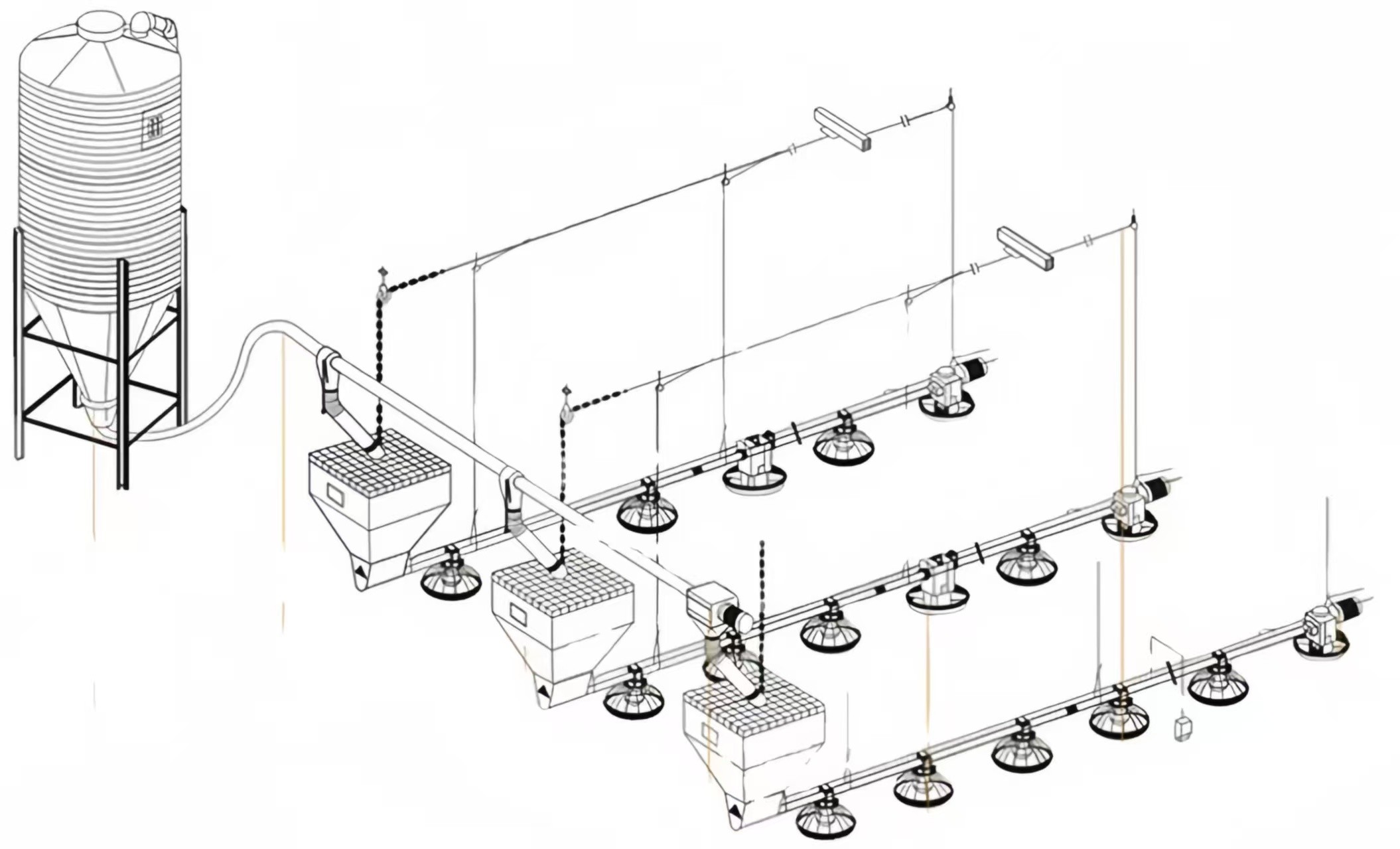

Main Feeding System
Automatic pan feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to transport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the order to motor to make it working or stop.
Drinking System
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.Automatic drinking system will include nipple drinkers, filter, pipe connection,lifting piece, dosing device, tube fix clip.s-hook,lifter, small pulley, nylon cord.
The Floor SPecification
| Product name | Floor Broiler Pan Feeding System |
| Type | Automatic |
| No. Of birds/pan | 55-75 broiler per pan |
| Hopper | Hot galvanized ,70kg or customization |
| Motor | China TIANRUI Brand |
| Feed pipe | 4 Holes /3040mm,with or without rib;1.2mm thickness |
| Auger | China Technical Brand / 45MM |
| Feed pan | 330mm diameter; with grill or without grill |
| Feed lever sensor | France IFM Brand |
| Suspention Part | Pulley,Steel Wire,Manual Witch etc |
On-Site Installation
1. Make suitable design plan and detailed approval drawings of steel structure building according to the land layout area and purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our client
4. Meticulous Fabrication,with great precision.
5. Erection & installation of steel structure building. Our technician and skilled workers can be dispatched on site to guide or erection process.
6. Transportation & delivery per your requirements
What Can We Do for You?
Introduction of KXD
Qingdao KXD Steel Structure Co., Ltd. has many years of experience in EPC design, production equipment, and services for piggery and poultry farms. As a provider of piggery and poultry breeding solutions, the company has developed a comprehensive product and solution system through its services and practices.
High Grade Production Quality
KXD has a strict product quality control system and is dedicated to creating high-quality projects for customers.
Mature Technological Strength
Based on the development trend of the industry, KXD has been researching and developing new products, new technologies and new processes .
A Comprehensive Product System
KXD has a strict product quality control system and is dedicated to creating high-quality products for customers.
Exquisite Service Level
KXD provides detailed pre-sales consulting services, installation services, and after-sales services for your breeding farm.
A Broad Business Scope
KXD's sales and service network covers all over the world, and its high-quality equipment has been recognized by users worldwide, attracting customers from all over the world to come and inspect.
