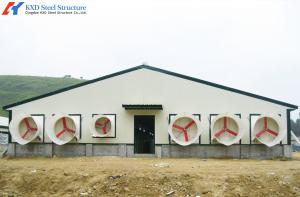

Steel Structure Poultry House Details
| Main Steel Frame | Include H section Column&Beam, Purlins, Support,Angel Steel etc. |
| Roof & Wall Cladding | Roof & Ceiling, Wall Panel, Fiberglass Wool as Roof Insulation, Ridge Tile,Trim Coverage and Screws etc. |
| Door & Window | Steel Insulation Door & Aluminum Window and Trims |
| Fastener | Foundation Bolts, Bolt and Nuts etc. |
| Equipment | Cages, Includes H Type and A Type |
| Feeding System |
| Manure-Removing System |
| Cooling and Ventilation |
| Lighting System |
| Environment Controlling System |
Feeding System for Broiler
Broiler pan feeding system is consisted of drive system, feed hopper, feed transport auger, feed pan, suspension system, anti-perch system and feed level sensor. Its major fun to transport feed from hopper to every feed pan, and to automatically control the on/off rive system, achieving automation of the entire feeding system.
The tray is made of PP-polypropylene pure raw material, design for the 14 grid, 13 speed able, so as to meet the production quantity of food, different day old chickens. Smooth, c or the design of V type, hanging fastening, convenient disassembly and cleaning, each tr 0-55 adult chicken, can also be as the chicks feeding use.
Feeding System Composition
• Vice driver • The feed pan • Feed tube • Augor • Side feed box • The lifting device • Porching prevention device
• Silo type and hopper type are the two main feeding lines.
• Feed transport system runs steadily, and feed can be transport ed to each feed pan to guarantee the sufficient feedsupply for broiler.
• Silo volume can be adjusted based on the specific number of birds per shed. (Approximately 0.65 ton/m3)
• Imported feed level sensor is provided in the automatic electronic-controlled box, which greatly enhances the accuracy of the whole feeding transport process.
• Feed pan is adjustable in height, easy to clean, and can bedismantled and then used for rearing.
Feed Pan Details
| Condition | New | Name | Broiler Pan Feeder |
| Warranty | 1 Year | Application | Poultry Farm Chicken Feeding |
| key Sell Points | Competitive Price& High Quality | Weight | 0.9 KG |
| Place of Origin | Shandong, China | Capacity | 15-20 Broiler/ Pan |
| Brand Name | KXD | Operation | Full-automatic |
| Material | Plastic | Installation | Support Online Installing& on-site installation |
| Package | Carton | Feed line | 4Pan/3M |
Drinker Nipple Details
| Condition | New | Feature | 360 degree outer, Long Service Time Easy cleaning High performance |
| Warranty | 1 Year | Application | Poultry Drinking |
| Color | Custom | Package | 14*13*4.5cm/one pack 28 nipples |
| Place of Origin | Shandong, China | Farm Animals Type | Chicken Birds Ducks Geese Turkeys |
| Brand Name | KXD | Operation | Full-automatic |
| Size | 3.4cm*1.0cm | Installation | Support Online Installing& on-site installation |
| Weight | 0.3 KG | Material | 304 Stainless Steel+PP |

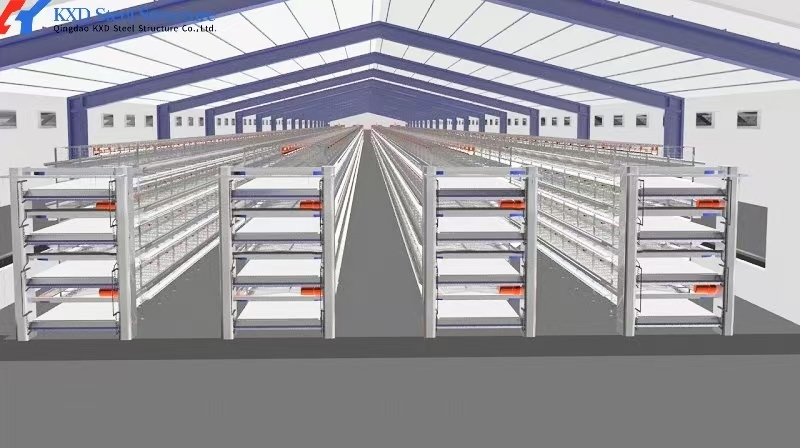

Cage Feeding System, A&H Type
| A type cage • Adopt hot-dip galvanization technology to ensure the service life of 15-20 years. • Long service life, high stability, and low cost of the equipment. • Semi-Automatic drinking and manure cleaning can help to save energy and improve the working efficiency. • Well ventilation, comfortable environment, easy to operate. • Low proportion between forage and egg, low production costs. Applicable to manual or semi-automatic, open chicken house raising. The breeding quantity is no more than 20k layers, recommended to use. •It also helps to save operator's time and labor cost, and improve raising performance. |
| H type cage • Adopt hot-dip galvanization technology to ensure the service life of 20-25 years. • H-type cage is the room saver, can reach more breeding quantity. • Automatic drinking, feeding, manure cleaning and egg collecting can greatly save energy and improve the working efficiency. • Long service life, high stability, and high output rate of return and comprehensive rate. • High degree of mechanization, high degree of hygiene in the chicken house, low irritating smell, and clean feces disposal in place. H type cage can meet the needs of large-scale farming. |
Inside Equipment for Ground Feeding
1.Main Feeding line
It is transferred to the feeders by delivery system when feed fill up base hopper. The base hopper with qualities of large capacity,scientific design,firm structure,low cost and long life span.
2.Broiler Pan Feeding System
Feed pan is the core of feeding system. The pan feeding system for broilers is solid and reliable through the application of high quality materials and components.easy access for birds from day one to flow out.
3.Nipple Drinking System
Nipple drinking system provides flesh and clean water for birds,which is very vital to let the birds have a good growing performance. Meanwhile,nipple drinking system can make the poultry house environment better. The nipple drinking system has been become the necessary equipment for stander poultry feeding.
4.Environment Control System
Based on the windows 2000 of the automatic environmental monitoring network system of poultry house. You can easily achieve centralized monitoring of environmental conditions within a certain range.
Our One-Stop Service
1. Make suitable design plan and detailed approval drawings of steel structure building according to the land layout area and purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our client
4. Meticulous Fabrication,with great precision.
5. Erection & installation of steel structure building. Our technician and skilled workers can be dispatched on site to guide or erection process.
6. Transportation & delivery per your requirements
Package & Shipping
Product Packaging:
All components are packed in bundles and secured with steel straps.
The main frame is packed in a container or shipped as a single package.
Wall and roof panels are packed separately to avoid damage during shipping.
All necessary fittings and accessories are included in the package.
Shipping:
The Steel Structure Poultry House will be shipped by sea.
Delivery time will vary based on the destination and shipping method.
Customers will be provided with tracking information once the product has shipped.
